Short Wave Diathermy

Shortwave Diathermy uses high frequency electromagnetic energy to generate heat. It may be applied in pulsed or continuous energy waves. Shortwave Diathermy Machines are used in Physiotherapy to treat muscular pain and all joint conditions such as sprains, strains, bursitis, tenosynovitis and ensure increase in blood supply. HMS manufactures continuous as well as pulsed Shortwave Diathermy Machines in 3 models: INDOTHERM® 300W, INDOTHERM® 500W and INDOTHERM® P 500W.

Shortwave Diathermy 300Watts

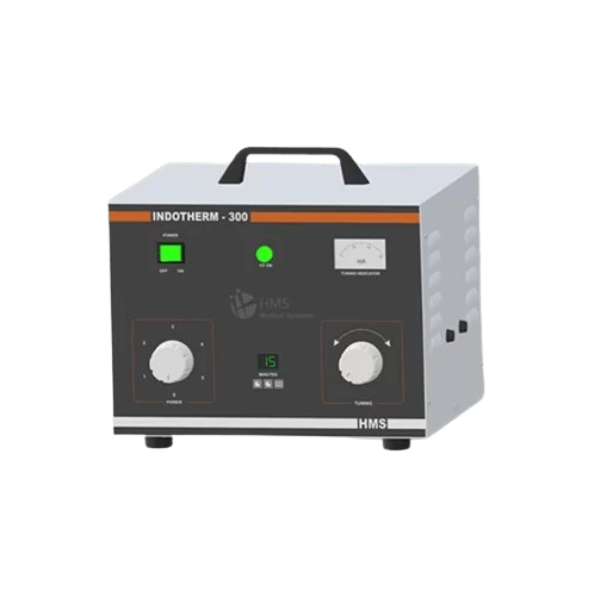

INDOTHERM 300 W is a portable shortwave diathermy machine (continuous) which is meant for small clinics. It is easy to maintain and has user-friendly options. It has a 99-minute digital timer. It automatically cuts off after the treatment time gets over.

  • Mains Cable
  • Output Cable
  • Rubber Pad
  • Instruction Manual
  • Model : INDOTHERM 300W
  • Operation Mode : Electrical
  • Usage : Clinical, Hospital, Personal
  • Frequency – 27.12 MHz
  • Output Power – 300 W (Adj in 5 steps)
  • Timer – 0-99 mins at the end of treatment time out put cut off automatically and buzzer sound up
  • Dimensions L x B x H – L x B x H – 38.5 x 40 x 30 cms
  • Weight – 22 KGS

    • Shortwave Diathermy 500 Watts

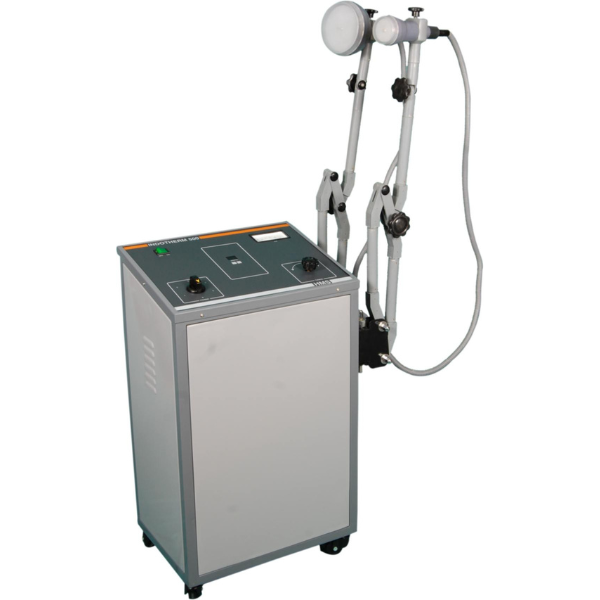

    INDOTHERM 500 is an advanced, heavy-duty shortwave diathermy equipment (continuous) which can be used in hospitals as well as bigger clinics. They are mounted on castors for easy mobility. It is provided with plastic molded, multi-position arms set for setting the treatment place without disturbing the patients. It is also provided with a digital timer to set the treatment time.

  • Rapid Reduction of wounds
  • Rapid re absorption of hematomas and oedemas
  • Powerful Stimulation of the Peripheral Circulation
  • Post-Traumatic and post operative disorders such as arthropathy, confusion, distortion, haematom.
  • Other Disorders such as ankylopoietic, Spondylosis, Bursitis, coccygodinia, myalagia(acute) and chronic sinusitis.
  • Model : INDOTHERM 500W
  • Operation Mode : Electrical
  • Usage : Clinical, Hospital, Personal
  • General frequency – 27.12 MHz
  • Output Power 500 W
  • Timer – digital timer 0-99 min. with acoustic signal and automatic cut-off
  • Mains Voltage – 220V/50 Hz
  • Dimensions – L x B x H – 35 x 48 x 75 cms
  • Weight – 38 Kgs

    • Shortwave Diathermy P500Watts

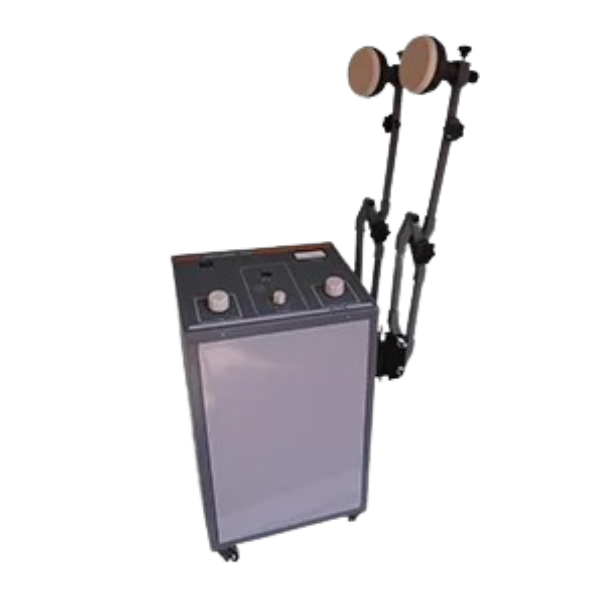

    INDOTHERM P500 is a heavy duty pulsed shortwave diathermy equipment which can be used in hospitals and big clinics. It is mounted on a castors to move from place to place. It has plastic molded multi-position arms set for setting the treatment place without disturbing the patient. Digital timer for setting the treatment time.

  • Rapid Reduction of wounds
  • Rapid re absorption of hematomas and oedemas
  • Powerful Stimulation of the Peripheral Circulation
  • Post-Traumatic and post operative disorders such as arthropathy, confusion, distortion, hametoma.
  • Other Disorders such as ankylopoietic, Spondylosis, Bursitis, coccygodinia, myalagia (acute) and chronic sinusitis.
  • Model : INDOTHERM P500W
  • Operation Mode : Electrical
  • Usage : Clinical, Hospital, Personal
  • Generator Frequency – 27.12 MHz
  • Pulse Frequency – 50 – 500 Hz (10 steps)
  • Pulse Width – 400 μ sec
    • OUTPUT POWER:
  • Continuous – 500 W (Adj in 5 steps)
  • Pulse – 1000 W (Adj in 5 steps)
  • Timer – 0–99 min Digital Timer
  • Mains Voltage – 220 V / 50 Hz
  • Dimensions – L x B x H – 35 x 48 x 75 cms
  • Weight – 38 Kgs
