Muscle Stimulator Machine

Electrical Muscle Stimulation (EMS) is used in Physiotherapy to strengthen weak muscles. We have a wide range of Muscle Stimulator Machines for physiotherapy, ranging from desktop model to compact pocket size devices. Our muscle stimulator machines are Indigenously designed with international standards and are highly acclaimed for their sturdy, durable construction, accurate application, and reliable result. We have 6 models of Electrical Muscle Stimulator Machines to choose from: WALKSTIM®, DIGISTIM 202, DIGISTIM® EMS, DIGISTIM®, INDOSTIM® DT and INDOSTIM® 201.

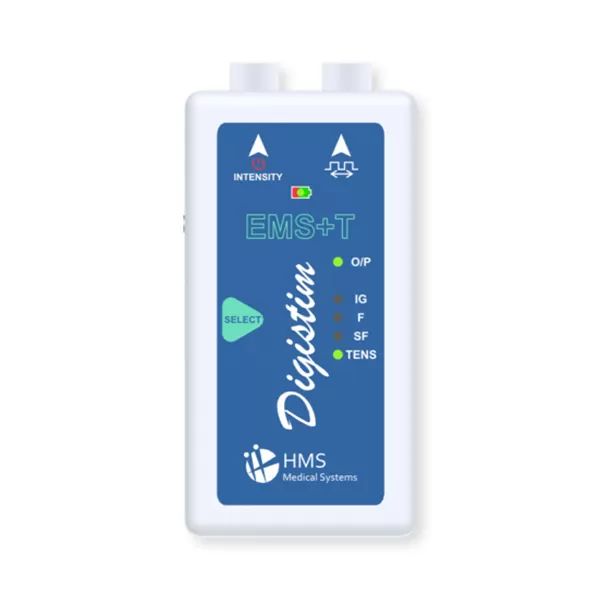

Portable Muscle Stimulator

DIGISTIM EMS is a pocket model and compact model muscle stimulator manufactured by HMS Medical System. Operated in 3 modes namely IG, F and SF. The device can be operated by either mains or battery.

  • Battery / Mains operated
  • Micro controller-based circuitry
  • Handy Model
  • Model : DIGISTIM EMS
  • Operation Mode : Electrical
  • Usage : Clinical, Hospital, Personal
  • Treatment Models – IG, F, SF
  • IG – 30–150 mSec.
    • FARADIC:
  • Freq./P.width- 50 Hz / 0.7 mSec
  • Surge Duration – 1–6 sec
  • Power Source – 9 V Battery / Adaptor
  • Battery / Mains operated
  • Micro controller-based circuitry
  • Handy Model

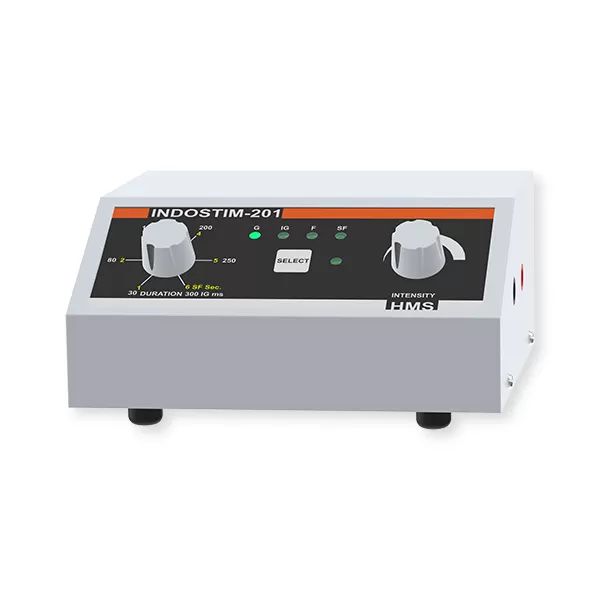

    • Therapeutic Muscle Stimulator

    INDOSTIM 201 is mainly used for fitness, exercise and therapeutic purposes. INDOSTIM 201 is quite easy to operate, compact and lightweight design. Shortcut keys are being provided for IG mode and SF interval and the settings can be altered using the same control.

  • Continuous galvanic current
  • Constant current output
  • Interrupted galvanic with variable pulse duration and surge per minute
  • Light Weight compact.
  • Buzzer for IG pulse
  • Model : INDOSTIM 201
  • Operation Mode : Electrical
  • Usage : Clinical, Hospital, Personal
  • Current Forms – G/IG/F/SF
  • Pulse duration INDOSTIM – 201 – 30 – 300 mSec
  • Faradic Frequency / P.width – 50 Hz / .7 mSec
  • Surge – 1-6 Sec (continuously adjustable)
  • Mains Voltage – 90 – 270V, 50 / 60 Hz
  • Safety class – Class I, Type (IEC60601-1)
  • Dimensions L x Bx H – 17 × 28.5 x 9 cm
  • Weight – 1.2 kgs

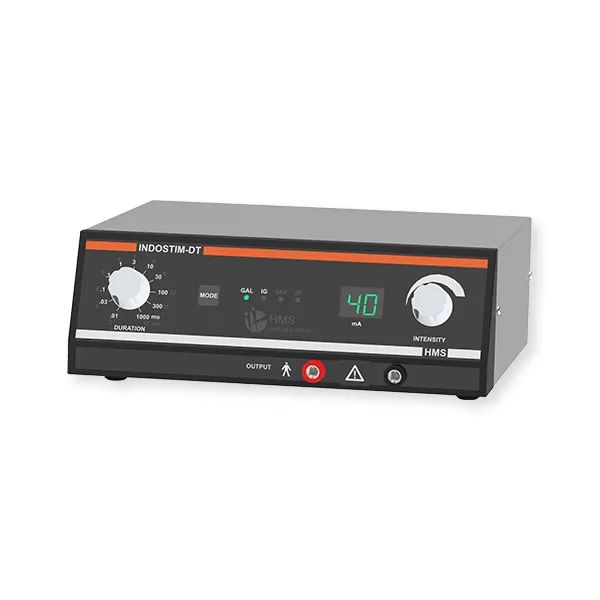

    • Diagnostic Muscle Stimulator

    INDOSTIM DT is used mainly for diagnostic and therapeutic purposes. An easy to operate and maintain device with a compact and lightweight design. Soft touch key is provided for selecting modes and the IG and SF interval can be set by a single control.

  • Continuous galvanic current
  • Constant current output
  • Interrupted galvanic with variable pulse duration and surge per minute
  • Surge variation in seconds
  • Light Weight compact.
  • Buzzer for IG pulse
  • Model : INDOSTIM DT
  • Operation Mode : Electrical
  • Usage : Clinical, Hospital, Personal
  • Current Forms – G/IG/F/SF
  • Pulse duration INDOSTIM – DT : 0.1, 03, .1, .3, 1, 3, 10, 30,100, 300, 1000 mSec
    • FARADIC :
  • Faradic Frequency / P.width – 50 Hz / .7 mSec
  • Surge – 1–12 sec (Continuously adjustable)
  • Output – 0–40 mA
  • Mains Voltage – 90 – 270V, 50 / 60 Hz
  • Safety class – Class I, Type (IEC60601-1)
  • Dimensions L x Bx H – 17 × 28.5 x 9 cm
  • Weight – 1.6 kgs

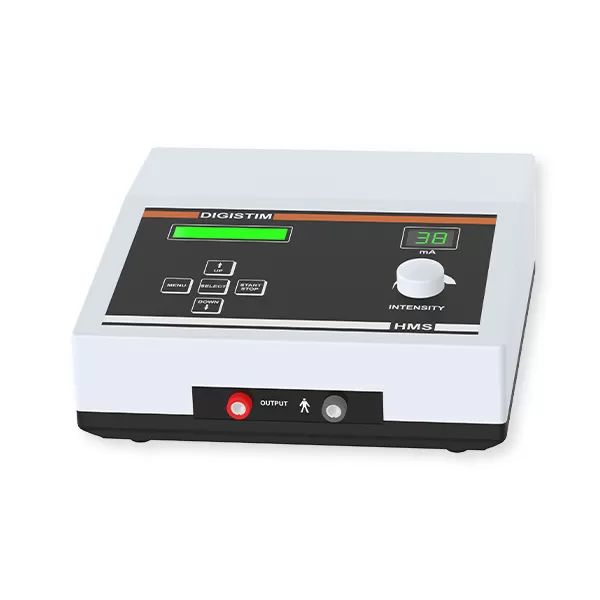

    • Computerized Diagnostic Stimulator

    A Computerized Diagnostic Muscle Stimulator Device is in compliance with international standards. Computerized Diagnostic Stimulator machine is known to play an effective role in improving the level of fitness of sports person. Our advanced microcontroller-based muscle stimulator machine works Efficiently and has features such as e LCD display, soft touch keys, treatment timer, etc.

  • Micro controller based stimulator cum tens
  • Two types INT galvanic pulse square and triangular
  • LCD display for therapy time and type
  • Treatment time & Treatment mode display
  • Soft touch key function
  • Model : DIGISTIM
  • Operation Mode : Electrical
  • Usage : Clinical, Hospital, Personal
    • TREATMENT MODES :
  • Iontophoresis, Galvanic, Int.Galvanic, Faradic, Surged Faradic, TENS, TENS Burst
    • FARADIC :
  • Freq./ P.width – 50 Hz / 7 mSec
  • Surge ON time – 1 – 10 sec (1 sec step)
  • Surge OFF time – 1 – 6 sec (1 sec step)
    • INT. GAL :
  • Therapeutic – 30 – 300 mSec (1 mSec step)
  • Diagnostic – 01, .03, .3, 1, 3, 10, 30, 100, 300 mSec
  • Pulse type – Square, Triangular
    • TENS :
  • Frequency – 2 – 250 Hz in (1 Hz step)
  • P.Width – 20–250 sec (1m sec step)
  • Output current – 0 – 50 mA
  • Timer – 0 – 60 mins
  • Mains Voltage – 90 – 270V, 50 / 60 Hz
  • Safety class – Class I, Type BF (IEC 60601-1)
  • Dimensions – L x B x H – 23 x 20 x 8 cms
  • Weight – 2 Kgs

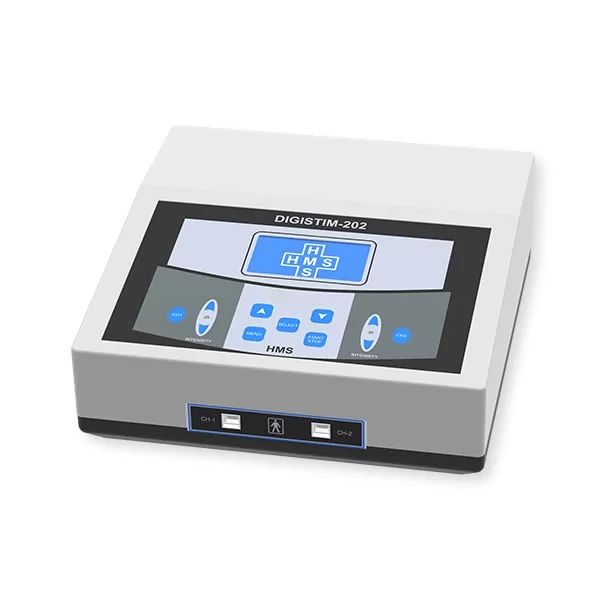

    • Computerised Dual Stimulator Combo Therapy

    DIGISTIM 202 is a computerised dual channel stimulator with MST, Dia-dynamic, TENS and FES outputs. DIGISTIM 202 presents a Special future in which both the channels can be set with two independent programs at the same time and treat two patient simultaneously. Soft touch membrane keys are provided to select the modes and parameters. The Digital Display Indicates the output current in mA and In IG mode Rectangular / Triangular pulses can be set.

  • Micro controller based circuitry
  • LCD display for therapy type and treatment time
  • Independent two channel
  • At a time two different treatment for two patients
  • 30 User memory
  • User friendly with soft touch key functions
  • Light weight plastic moulded cabinet
  • Model : Digistim 202
  • Operation Mode : Electrical
  • Usage : Clinical, Hospital, Personal
  • Treatment modes – Stimulator, TENS, Diadynamic and FES
  • Output current – 1 – 100 mA
  • Timer – 0 – 99 mins
    • STIMULATOR :
  • IG Therapeutic – 30 – 300 mSec (1 mSec step)
  • IG Diagnostic – .01, .03, .3, .1, 1, 3, 10, 30, 100, 300, 1000 mSec
  • Pulse type – Square, Triangular
  • Modes: Galvanic, IG Diagnostic,IG Therapeutic,Plain Faradic,Surge Faradic
    • SURGE FARADIC :
  • Freq./ P.width – 50 Hz / 0.7 mSec
  • Surge ON time – 1 – 10 sec (1 sec step)
  • Surge OFF time – 1 – 10 sec (1 sec step)
    • TENS :
  • Modes: Continuous, Burst, Sweep, Burst and Sweep
  • Frequency – 2 – 250 Hz in (1 Hz step)
  • P.Width – 20 – 250 sec (1m sec step)
    • FES :
  • Frequency – 20 – 120 Hz (1 Hz step )
  • ON time – 1 – 10 sec
  • OFF time – 1 – 10 sec
  • Ramp up/down – 1 – 10 sec
    • DIADYNAMIC :
  • DF
  • MF
  • CP
  • LP
  • Mains voltage – 90 – 270V / 50 – 60 Hz
  • Safety class – Class I, Type BF (IEC 60601 -1)
  • Dimensions – L x B x H – 23 x 20 x 8 cms
  • Weight – 1.6 Kgs

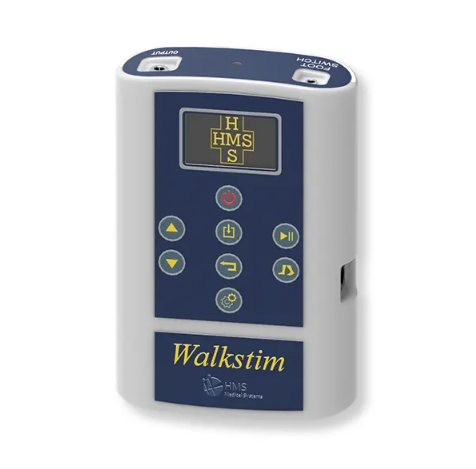

    • Functional Electrical Stimulator

    WALKSTIM is an advanced single channel functional electrical stimulator for dropped foot. Footswitch controlled stimulator designed to correct dropped foot in upper mot neuron conditions. These condition include stoke, multiple sclerosis, incomplete spinal cord injury (T12 and above)head injury, cerebral palsy, Parkinson’s disease and hereditary spastic pararparesis. WALKSTIM has Soft touch keys for selection of programs and built-in rechargeable battery.

  • Micro controller based circuitry
  • OLED display
  • Soft touch keys
  • Universal Input
  • Model : Walkstim
  • Operation Mode : Electrical
  • Usage : Clinical, Hospital, Personal
  • Frequency – 20 – 120Hz
  • Pulse width – 400 – 1000 micro seconds
  • Output Current – 10 – 100 mA
  • Output Time – 0.3 – 6 sec
  • Delay – 0 – 2 sec
  • Ramp Time – 0 – 2 sec
  • Extension Time – 0 – 2 sec
  • Output Waveform – Symmetrical & Asymmetrical Biphasic
  • Exercise Duration – 5 – 100 min
  • Exercise ON period – 1 – 10 sec
  • Exercise OFF period – 1 – 10 sec
  • Exercise Ramp Time – 1 – 10 sec
  • Display – Graphic OLED Display
  • Power Source – Dual Power (Mains/Battery)
  • Mains Input Voltage – 100 V – 240V AC / 50 or 60 Hz
  • Battery – 9V Rechargeable
  • Safety Class – Class I, Type BF (IEC 60601 -1)
  • Dimensions (L x B x H)– 80 x 30 x 120mm
  • Weight – 400gms
